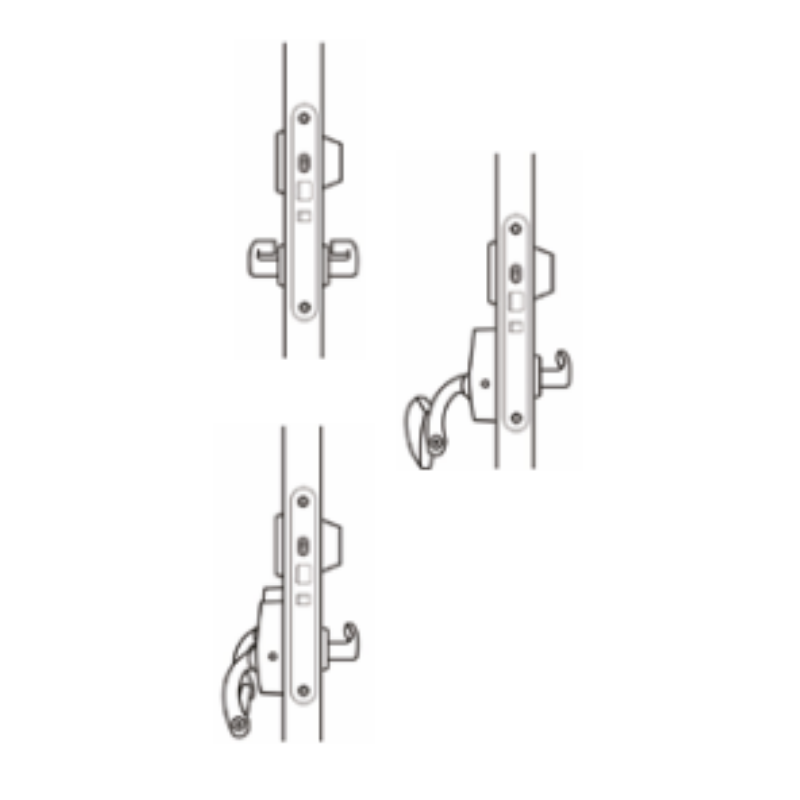

Exit lock cases with automatic deadlocking latch bolt for wooden
doors with one blade. The door is opened from outside with
a lever handle. The lock case fulfils the requirements of
the European standard for exit products SFS-EN179 and
SFS-EN1125 and the requirements of the lock case standard
SFS-EN12209. The lock is always opened from the inside
by a lever handle, push pad or panic bar.
Deadlocking is controlled by a snib in the front plate.
Using of the snib is normally blocked. The snib is released
by turning the key.
Snib position:
UP = Deadlocking, latchbolt protrudes 17 mm
The lock can be opened from outside by key only and
from inside by a lever handle, push pad or panic bar.
DOWN = Latchbolt protrudes 14 mm. The lock can be
opened from outside by lever handle also.
LE180X is the microswitch version of the lock. The switch
changes the status when latchbolt is protruded from
14 mm to 17 mm.
Following striker plates are recommended to be used with
microswitch version: 4692, 4693.
Striker plate LP711, LP714, LP721, LP731
Finish Fe/ZL
Cylinder ABLOY® C, N, T, U
Fire resistance: Wooden doors EI115 – EI130 and EI215 – EI230,
Metal doors EI115 – EI1120 and EI215 – EI2120
Mortise standard OneFit mortis
