Technical Attributes

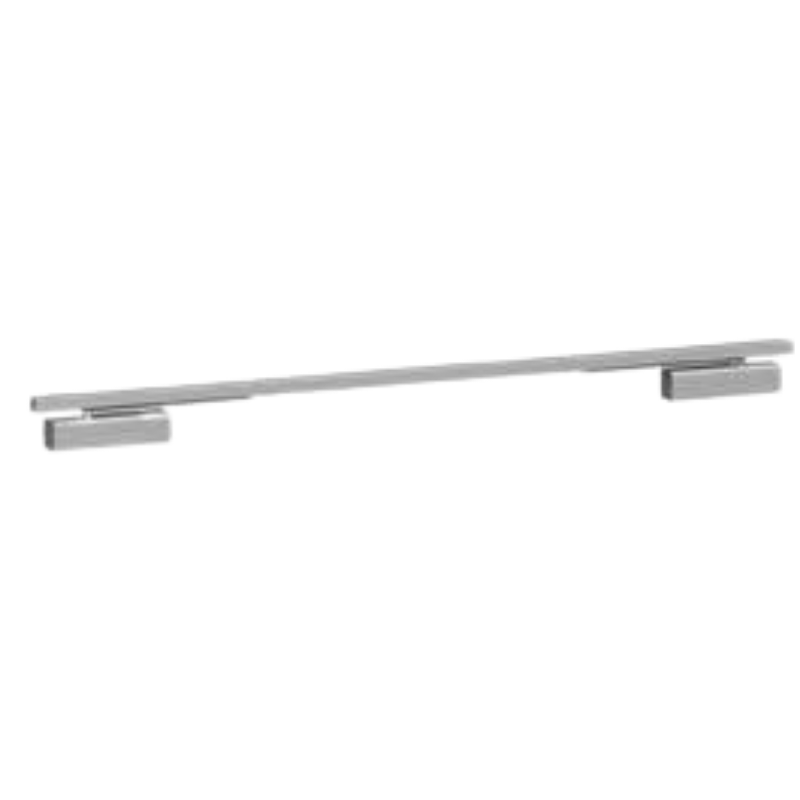

Door closer with Cam-Motion® technology and guide rail with
integrated mechanical coordinator
Certified in compliance with EN 1158, size 1-4
For double leaf doors 1250 – 2800mm wide
Correct closing sequence guaranteed for double leaf doors,
inactive leaf closes before active leaf starts to close
Active leaf able to stay open in any selected angle up to 150° when
inactive leaf is open
Suitable for fire and smoke protection doors
Adjustable closing speed, latching speed and backcheck
Variable adjustable closing force
Opening angle of active leaf (hinge side / non-hinge side) 150° /
120° Opening angle of inactive leaf (hinge side / non-hinge side)
170° / 120°
